Smart Relays

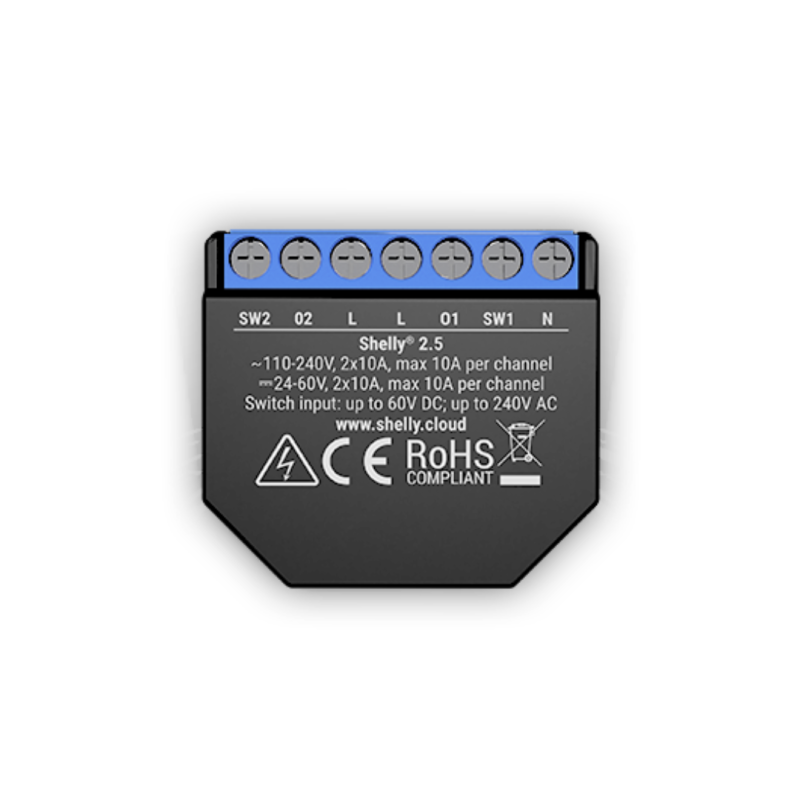

WiFi Relay - Shelly 2.5
Product code 0153
Sh 150,000.00
Out of stock right now
We are out of this one at the moment. Message us and we will tell you what the lead time is, or what else does the same job.
Ask us when it is back See what else is in stock- Genuine stock. Sourced from authorised distributors, warranty intact.
- Delivered across Tanzania with additional delivery charges.
- Multiple payment options.
Payment Options
- Cash on Delivery. You can pay cash at our store on pickup, or pay the rider upon delivery (Dar es Salaam only).
- Pay by Lipa Number
- M-Pesa
- Mixx by Yas
- Airtel Money
- Halopesa
- Selcom
- M-Pesa
- Pay by Card
- Visa
- Mastercard
- American Express
- Discover
- UnionPay
- Visa
- Pay by Apple Pay or Google Pay
- Apple Pay
- Google Pay
- Apple Pay
2 channels
Each metered
10 A
Per channel, 20 A total
Roller mode
Curtains, gates, garage doors
No hub
Works with the internet down
One box
Two circuits
About this product
The Shelly 2.5 puts two relays in one module, each with its own meter.
- Two circuits from one back box
- Or one motor instead of two lights
- Check the load: 10A per channel, 20A total
- No hub, no account, and it survives an outage
- Fitting the Shelly 2.5, and the current generation
Two circuits from one back box
The ceiling light and the wall lights. The veranda light and the security floodlight. Each switched on its own schedule and each metered separately.
On a two gang plate that means one module instead of two, and one set of wiring in a box that is probably already crowded. The two existing switches go on the two inputs and carry on working as they always did.
Or one motor instead of two lights
Put the Shelly 2.5 in roller shutter mode and the two relays become up and down for a curtain, a blind, a gate or a garage door.
The app remembers the position, so you can send it half open rather than only fully one way or the other. That is the same module doing a completely different job, and it is the reason people who bought one for lighting often end up buying a second for a gate.
Check the load: 10A per channel, 20A total
Two lighting circuits are comfortable. Two heavy loads are not.
A geyser on one channel and a pump on the other will breach the 20A total even though each sits inside the 10A per channel figure. If both loads are heavy, use two single modules on separate circuits rather than trying to make one device do it.
No hub, no account, and it survives an outage
It joins your Wi-Fi directly and keeps a local web interface, so schedules carry on when the internet does not.
Metering runs on both channels, so each of the two circuits reports its own consumption rather than giving you one combined figure. Overheating protection is built in, which matters on a two channel module in a sealed box.
Fitting the Shelly 2.5, and the current generation
36 x 39 x 17mm, wired on live, neutral and two loads, with the existing switches on the two inputs. An electrician fits it. Supply is 110 to 240V AC or 30 to 50V DC, and standby draw is under 1W.
If you are buying today rather than matching hardware already installed, the Shelly Plus 2PM is the current generation: Bluetooth setup, a faster processor, and obstacle detection in roller mode, which this one does not have. Shelly have moved on since this one, and the current range is at shelly.com.
Description supplied by the manufacturer.
Specifications
| Model | Shelly 2.5 |
|---|---|
| Type | Two channel in-wall relay with metering |
| Fitting | Electrician. Wired into the back box. |
| Channels | 2, independently switched |
| Maximum current | 10 A per channel, 20 A total |
| Maximum voltage | 240 V AC, 50 V DC |
| Supply | 110 to 240 V AC, or 30 to 50 V DC |
| Roller shutter mode | Yes, with position control |
| Power metering | Yes, on both channels |
| Radio | Wi-Fi 802.11 b/g/n, 2.4 GHz |
| Hub | Not needed |
| Cloud | Optional. Local web interface and local API. |
| Protection | Overheating protection |
| Standby power | Under 1 W |
| Operating temperature | -20 to 40 C |
| Dimensions | 36 x 39 x 17 mm |
| Product code | 0153 |
| Category | Smart Relays |
| Availability | Out of stock - ask us for the lead time |
What’s in the box
Not yet defined.
We are still collecting box contents from the manufacturers. Ask us on WhatsApp and we will open one on the shelf and tell you exactly what is inside.
Questions
Can it really run a gate or a garage door?
In roller shutter mode the two relays become open and close and the app tracks the position, so yes for a motor that expects that kind of control. Every gate motor is different, so tell us the make and model and we will check it with you before you buy.
Can I use both channels for heavy loads?
No. It is 10 A per channel but only 20 A across the two together, and both relays sit in one small module that has to shed heat. Two lighting circuits are what it is for.
Will it fit in my wall box?
It is 36 by 39 by 17 mm, and it is the deepest of the small Shellys once its wiring is in. On a two gang box it is usually fine. Have your electrician look before you buy.
Do my existing switches still work?
Yes, both of them, one per channel. Momentary and toggle are both supported, and in roller mode the two switches become up and down.
Anything else? Ask us on WhatsApp and we will tell you straight.
