Smart Switches
JR Touch Neon Switch - 4 Gang + Fan Controller
Product code 2412
Sh 850,000.00
Out of stock right now
We are out of this one at the moment. Message us and we will tell you what the lead time is, or what else does the same job.
Ask us when it is back See what else is in stock- Genuine stock. Sourced from authorised distributors, warranty intact.
- Delivered across Tanzania with additional delivery charges.
- Multiple payment options.
Payment Options
- Cash on Delivery. You can pay cash at our store on pickup, or pay the rider upon delivery (Dar es Salaam only).
- Pay by Lipa Number
- M-Pesa
- Mixx by Yas
- Airtel Money
- Halopesa
- Selcom
- M-Pesa
- Pay by Card
- Visa
- Mastercard
- American Express
- Discover
- UnionPay
- Visa
- Pay by Apple Pay or Google Pay
- Apple Pay
- Google Pay
- Apple Pay
4 + 1
Light channels and fan controller
5 Speed
Step fan regulator
1600 W
Max load per switch channel
500 W
Max fan channel load
4M
Modular back box size
150 m
Z-Wave wireless range
About this product

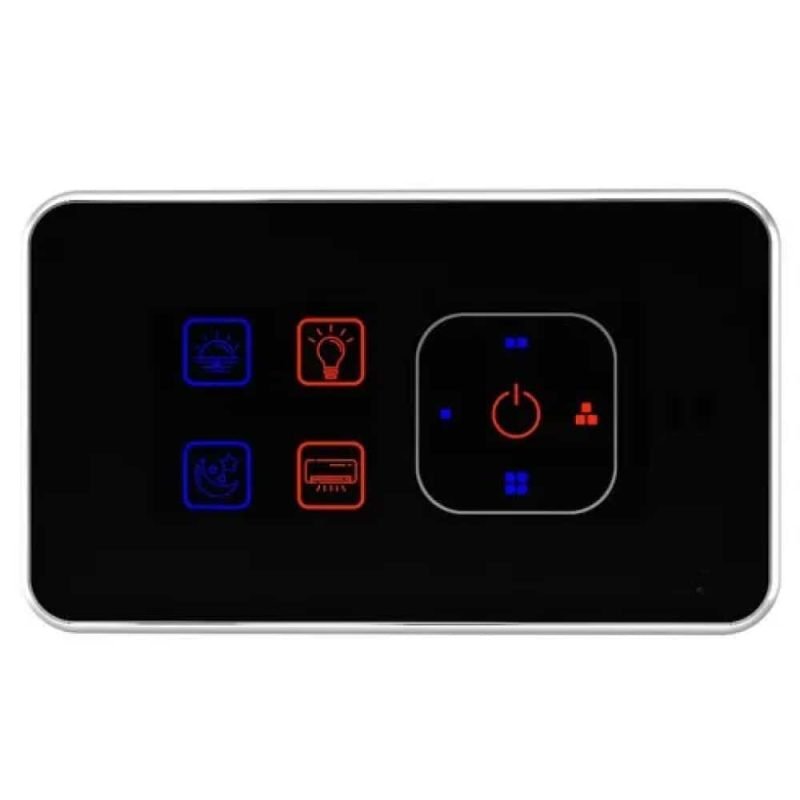

The JR Automation Technology Neon Series NS-20SIW0401Y000 is a mains-powered capacitive touch wall panel that combines four on-off lighting switches with a dedicated fan speed regulator on a single faceplate. Designed to fit into a standard 4M modular wall box, it replaces the clutter of separate light switches and rotary fan knobs with a streamlined touch interface.
Lighting and Fan Control
The panel features four capacitive touch switch channels alongside a dedicated fan control interface. Each lighting channel supports electrical loads up to 1600W, while the fan controller handles ceiling fan loads up to 500W across five discrete speed settings. The panel operates on standard 220-250V AC mains electricity and supports an overall rated current of 16A. Built-in LED backlighting provides blue and red status indication with automatic day and night brightness adjustment.
Z-Wave Integration and Requirements
Wireless communication is handled by an integrated 700 series Z-Wave module operating on the Z-Wave IN frequency, offering an open-air wireless range of up to 150 metres. Because the unit is powered directly by mains electricity, it also acts as a Z-Wave network repeater to route signals across your mesh network. Each switch channel can also be configured within your automation system as a scenario switch to trigger multi-device scenes.
Installation and Compatibility
This unit requires a 4-module (4M) modular back box and direct connection to 220-250V mains wiring. Installation must be carried out by a licensed electrician. To integrate with smart home apps and voice assistants, a compatible Z-Wave hub operating on the Z-Wave IN frequency is required. A Z-Wave controller is not included with the unit.
Description supplied by the manufacturer.
Specifications
| Brand | JR Automation Technology |
|---|---|
| Model Number | NS-20SIW0401Y000 |
| Series | Neon Series |
| Switch Channels | 4 |
| Fan Channels | 1 (5 speed settings) |
| Switch Load Capacity | 1600W per channel |
| Fan Load Capacity | 500W |
| Total Rated Current | 16A |
| Input Voltage | 220-250V AC |
| Module Size | 4M |
| Touch Type | Capacitive touch |
| Wireless Protocol | Z-Wave (700 series chip, IN frequency) |
| Wireless Range | Up to 150 m |
| LED Backlight | Blue and red with day/night brightness control |
| Color | Black / Gold, White / Silver |
| Product code | 2412 |
| Category | Smart Switches, Wired |
| Availability | Out of stock - ask us for the lead time |
What’s in the box
Not yet defined.
We are still collecting box contents from the manufacturers. Ask us on WhatsApp and we will open one on the shelf and tell you exactly what is inside.
Questions
Does this switch panel require a hub?
Yes. It communicates via Z-Wave and requires a smart home gateway or controller that supports the Z-Wave IN frequency. A hub is not included.
What size wall box does this panel fit?
It fits a standard 4-module (4M) modular electrical back box.
How many fan speeds does the regulator provide?
The integrated fan controller provides five distinct speed steps in addition to on and off control.
What electrical loads can the switches handle?
Each of the four switch channels is rated for up to 1600W, and the fan channel is rated for up to 500W, with a total panel rating of 16A on 220-250V AC.
Can the touch buttons trigger automation scenes?
Yes. Each of the four switch channels can be configured in your Z-Wave controller to act as a scenario switch.
Anything else? Ask us on WhatsApp and we will tell you straight.
